Since BioJava 3.0.5 the protein structure modules can parse the biological assembly information out of PDB and mmcif files and create a biologically correct representation of protein structures.

For more information about the differences between the asymmetric unit and the biological assembly see a tutorial at RCSB PDB

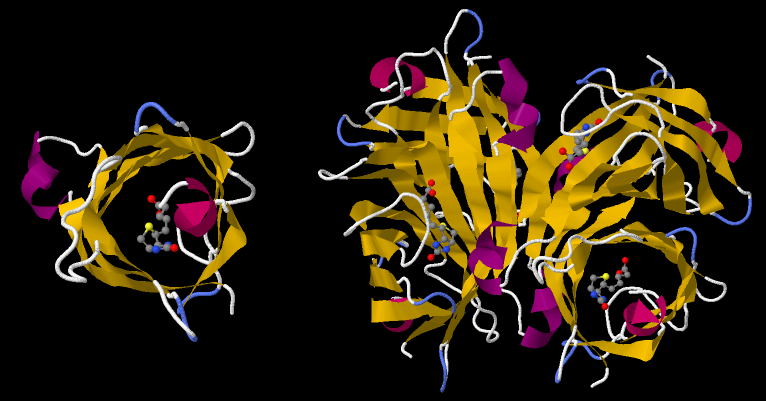

An comparison of the asymmetric unit and the biological assembly of Streptavidin is shown in this screenshot: It compares the asymmetric unit of PDB ID 1STP (left side) with its biological assembly (right side).

Here some example code how to load the biological assembly:


           // good examples: 1stp 1gav 1hv4 1hho 7dfr 3fad  1qqp

           // assembly 0 ... asym Unit
           // assembly 1 ... the first bio assembly
           // example 1fah has  2 assemblies (two copies of the assembly in asymmetric unit)


           // Various interesting symmetries: (see Lawson, 2008)
           // Circular    - 1TJA
           // Dihedral    - 1ei7
           // Icosahedral - 1a34
           // Helical     - 1cgm


           // DNA 173D .. 2

           // we load the bio assembly info out of the PDB files
           BioUnitDataProviderFactory.setBioUnitDataProvider(BioUnitDataProviderFactory.pdbProviderClassName);

           //Structure bioAssembly = StructureIO.getBiologicalAssembly("4A1I",2);

           Structure bioAssembly = StructureIO.getBiologicalAssembly("1ei7",1);

           StructureAlignmentJmol jmolPanel = new StructureAlignmentJmol();
           //jmolPanel.evalString("set autobond=false");
           jmolPanel.setStructure(bioAssembly);

           // send some commands to Jmol
           jmolPanel.evalString("select * ; color structure ; spacefill off; wireframe off; backbone off; cartoon on; select ligands ; spacefill 0.4; color cpk;");

           System.out.println("done!");
